Southern Beltway Design & Construction Details

Section U.S. Route 22 to I-79

Opened October 2021 with ongoing improvements into 2022

Record of Decision

55A1-1 Map

55A1-1 U.S. Route 22 Bridges

U.S. Route 22 Bridges State Route 576, Section 55A1-1: Adjacent to (East of) the previously completed State Route 576. This interchange is located approximately 5 miles Southeast of the Pittsburgh International Airport and carries State Route 576 over U.S. Route 22. The mainline twin structures each consist of a 4-span steel multi-girder bridge that span State Route 4004 and U.S. Route 22 along with ramps for the previously constructed Southern Beltway. This section required 200,000 cubic yards of excavation. The bridges are approximately 800 feet in length.

Construction Started
February 2014

Construction Completed
August 2015

Travel Details
This section of roadway is not currently open to traffic. Additional information will be provided as it is made available.

55A1 Map

55A1 U.S. Route 22 to Quicksilver Rd

Section 55A1 Construction Section of the Southern Beltway (PA Turnpike 576) runs from U.S. Route 22 to Quicksilver Rd. in Robinson Township, Washington County. Independence Excavating finished the approximate four-mile section, which contains one full interchange at Beech Hollow Road, three mainline bridge structures and one overpass. Beech Hollow Road and State Route 980 were realigned to create an intersection with Donaldson Road. Candor Road was reconstructed to include the overpass structure. The bridge structures carry PA Turnpike 576 over Little Raccoon Creek and Quicksilver Road. This portion of the project required nearly five million cubic yards of excavation.

Construction Started
December 15, 2016

Construction Completed
June 2019

Travel Details
This section of roadway is not currently open to traffic. This section of roadway will be open in the fall of 2021 in conjunction with the remaining sections of the Southern Beltway.

55A2 Map

55A2 U.S. Route 222 to Quicksilver Road to Panhandle Trail

U.S. Route 22 to Quicksilver Road to Panhandle Trail Section 55A2 located between sections 55A1 and 55B in Washington County is approximately 2.7 miles in length and includes:

  • Four precast concrete box culverts
  • One single-span precast concrete arch bridge
  • One single-span composite prestressed concrete PA bulb-tee beam bridge
  • Dual single-span composite steel multi-girder bridges
  • Dual eight-span composite steel multi-girder bridges
  • One full interchange
  • Reconstruction of State Route 980, State Route 4037 (Fort Cherry Road), and State Route 4012 (Noblestown Road)
The project requires more than three million cubic yards of excavation and includes a new connector road that will link Fort Cherry and Noblestown roads to State Route 980.

Anticipated Construction Start
Mid-December 2018

Anticipated Schedule
December 2018-June 2021

Travel Details
A temporary access road will be constructed to maintain access to the McDonald Sportsmen's Association while the contractor builds the Fort Cherry Connector Road.

55B Map

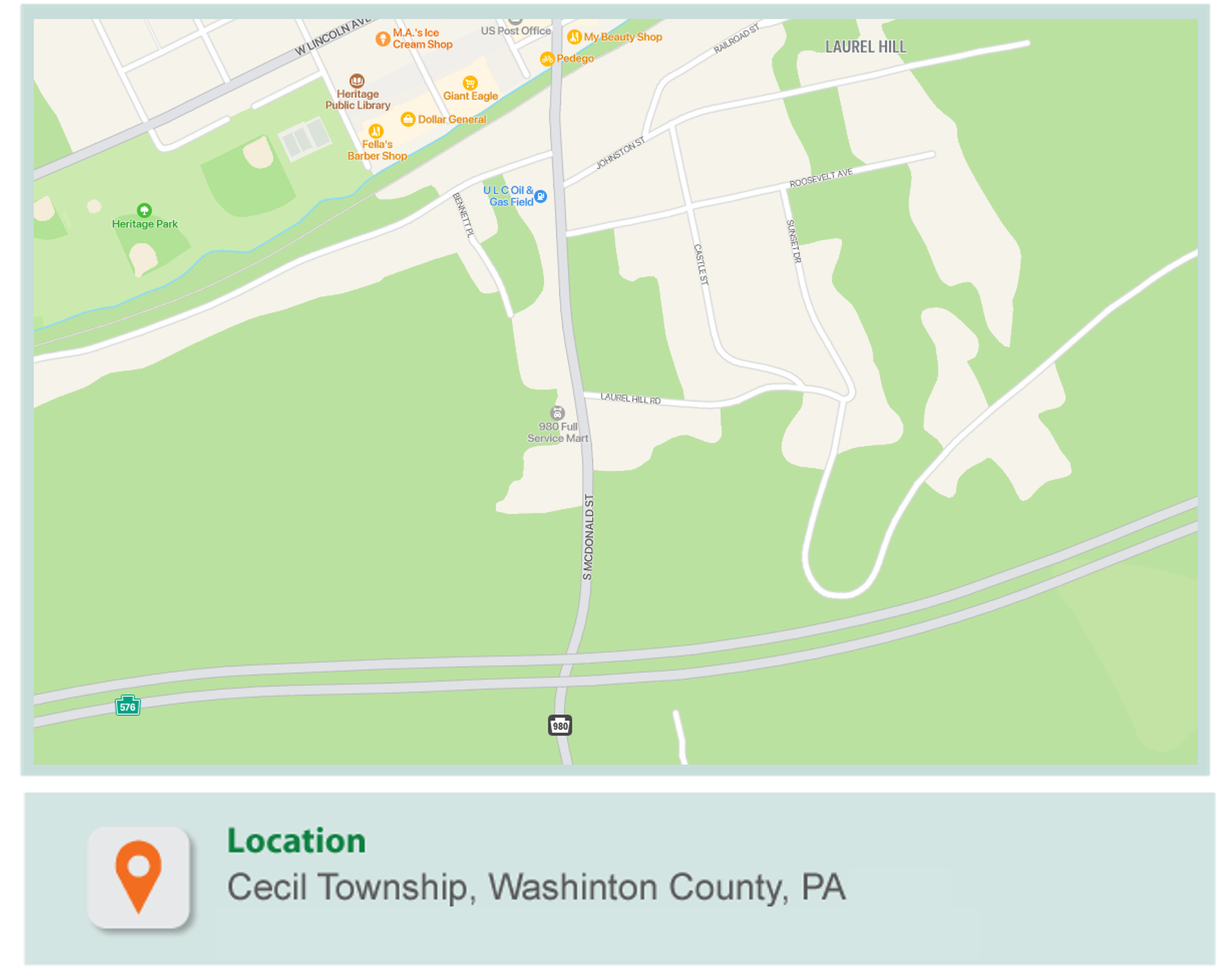

55B Panhandle Trail to Cecil Reissing Rd

Panhandle Trail to Cecil Reissing Rd. Turnpike 576: This section is approximately 3.2 miles in length, and requires nearly six million cubic yards of excavation. The project includes a five span bridge that is 1,370 feet in length over State Route 980. The northern leg of Reissing Road is to be relocated and become Laurel Hill Road, and the southern leg will have a new connection to State Route 980. Realignment of the Reissing and Profio Road intersection is also included.

Construction Started
February 2017

Constuction Completed
December 2019

Travel Details
This section of the roadway is not currently open to traffic. This section of roadway will be open in the fall of 2021 in conjunction with the remaining sections of the Southern Beltway.

55c1-1 maps

55C1-1 Cecil Reissing Rd to State Route 50

Cecil Reissing Rd. to State Route 50 Turnpike 576, Section 55C1-1 : Adjacent to (East of ) Section 55B, is approximately 2 miles in length, and requires nearly four million cubic yards of excavation. The project includes 4 bridges, two that span State Route 50, Wheeling and Lake Erie Rail line, and Millers Run Creek Road. A third bridge will connect Cecil Reissing Road to State Route 50; North of its current location. The fourth bridge will act as the overpass for Cecil Sturgeon road over Turnpike 576 (as part of the interchange) and will provide a new connection with Reissing Road. The new interchange will be located approximately one mile West of State Route 50 and includes four Ramps for ingress and egress to Turnpike 576.

Construction Started
November 2017

Constuction Completed
November 2020

Travel Details
Cecil Reissing Road, Cecil Sturgeon Road, Reissing Road, Millers Run Road, and South Fayette Way are open to public traffic. SR-0576 Mainline is not open to traffic. Additional information will be provided as it is made available.

55C1-2

55C1-2 State Route 50 to Coal Pit Road

The 55C1-2 Construction Section of the Southern Beltway (PA Turnpike 576) runs from State Route 50 to Coal Pit Road in South Fayette Township, Allegheny County. Trumbull Corporation finished the approximate two-mile section, which contains a crossing of Hickory Grade Road over PA 576 and approximately 3 million cubic yards of excavation.

Construction Started
April 5, 2018

Constuction Completed
June 2020

Travel Details
This section of roadway is not currently open to traffic

interchange map 1

55C2-1 Route 50 to I-79 Including Interchange with PA Turnpike 576

PA Turnpike 576, Section 55C2-1: The project extends from approximately one mile west of I-79 in Allegheny County through an interchange connecting PA Turnpike 576 with I-79 and ends at Morganza Road just north of Cecil-Henderson Road in Washington County. The construction of the interchange includes the partial reconstruction of I-79 from the Southpointe Road Interchange to Alpine Road. The project also includes two miles of PA Turnpike 576 mainline construction, three miles of I-79 reconstruction, seven interchange ramps, four bridges, two bridge widenings and two, new intersections with PA Turnpike 576 ramps and Morganza Road. Approximately six million cubic yards of earth will be moved for the construction. When complete, there will be three southbound I-79 lanes from Alpine Road to the Southpointe Interchange and there will be a free-flow interchange between I-79 and PA Turnpike 576.

Construction Started
April 4, 2019

Anticipated Schedule
Early 2019 to Mid-2022

Travel Details
I-79 northbound and southbound continue to progress through various stages of construction phasing and is currently an active work zone with a 45 MPH speed limit. Northbound traffic is nearing it's final configuration with work ongoing in the median at the north and south ends of the project. Southbound traffic is currently using a split lane configuration at the south end of the project to complete permanent paving on the interior lanes. Rest areas both northbound and southbound are open.

SR 576 is now open to traffic through the project with access being provided on a ramp from I-79 northbound to 576 westbound toward the airport, and traffic from 576 eastbound can merge onto I-79 southbound near the National Cemetery of the Alleghenies.

interchange map 2
55c1-2

55C2-2 Morganza/Morgan Road Improvements

Turnpike 576, Section 55C2-2: Between I-79 and Morganza Road in Washington County, and adjacent to future Turnpike project Section 55C2-1, is approximately 1 mile in length, and requires over 750 thousand cubic yards of excavation. The project includes a new alignment for Morgan Road with 2 overpass bridges above I-79 and Turnpike 576, and a new roundabout at Morgan Road’s intersection with Morganza and Baker Roads.

Construction Started
October 3, 2018

Construction Completed
July 2020

Travel Details
Morgan Road, Baker Road, Morganza Road, North Morganza Road, and South Morganza Road are open to public traffic. Additional information will be provided as it is made available.

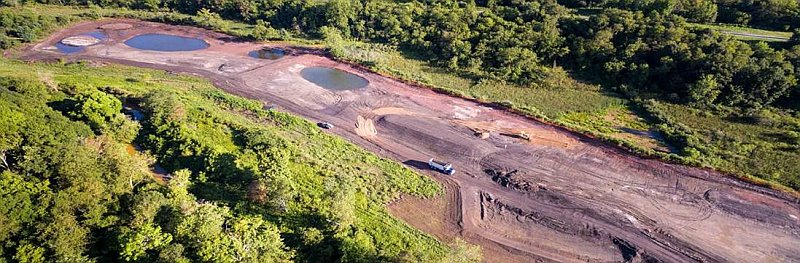

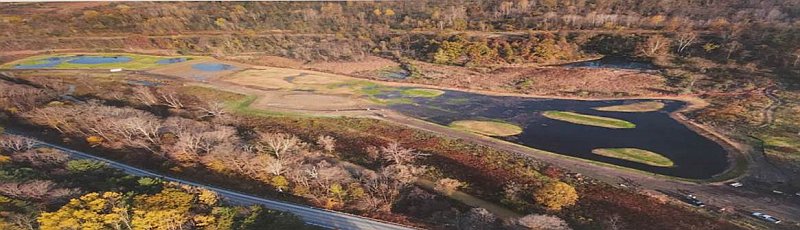

55W Wetland Mitigation Site

Wetlands 55W Wetland Mitigation Site was completed by the contractor, Cast and Baker Corporation on December 6, 2016. The site is located approximately 3/4 of a mile northeast of Burgettstown PA, adjacent to State Route 4012, and west of Raccoon Creek in Washington County, PA. As a result of the construction of the Southern Beltway, 9 acres of new wetland has been constructed adjacent to an existing wetland.

The project involved the removal of approximately fifty thousand cubic yards of material, replaced with approximately nine thousand cubic yards of topsoil for wetland infiltration; reseeded and planted with specific vegetation/shrub plants that are designed to thrive in a wetland area.

The Wetland Mitigation Site area is adjacent to an existing wetland north of the site and is also adjacent to PA State Game Lands. The 55W mitigation project is in keeping with the PA Turnpike's commitment to utilizing Best Management Practices.

Construction Started
February 2014

Construction Completed
December 2016

wetland mitigation site wetland mitigation site

Section I-376 to U.S. Route 22

Completed October 2006

The Southern Beltway I-376 to U.S. Route 22 Project, also known as the Findlay Connector, was the first to be constructed and opened to traffic in October 2006. This project begins at the existing Pittsburgh International Airport Midfield Terminal Interchange on I-376. It then proceeds southward 6 miles to a new interchange with U.S. Route 22 between the existing Bavington and PA Route 980 interchanges. This project received environmental clearance, the Record of Decision, in May 1998. The total project cost was $238 million.

CASHLESS TOLLING CONVERSION
(Completed Summer 2018)

This project converted the Findlay Connector (Toll 576) to all electronic tolling by constructing overhead gantries outfitted with E-ZPass Scanners and high speed cameras. The cashless tolling plaza is located at Milepost S-2.60, approximately 1.1 miles west of the Westport Road Interchange, Exit 4. The former toll plazas at Exit 2 (U.S. Route 30), Exit 4 (Westport Road), and Exit 6 (U.S. Route 22) have been demolished. This work is part of the PA Turnpike’s transition to Cashless Tolling. Visit www.nocashzone.com for additional information about the Findlay Connector conversion and the overall Cashless Tolling Project.

Mon/Fayette Expressway and Southern Beltway Project Map

    I-79 to Mon/Fayette Expressway

    This project begins with the interchange at I-79 near the Allegheny/Washington County line and proceeds approximately 12.5 miles eastward to a new interchange with the Mon/Fayette Expressway near Finleyville. The U.S. Army Corps of Engineers (USACE) issued a Record of Decision in May 2009. The Selected Alternative begins at Morganza Road at the proposed interchange to I-79 and continues in a south/southeasterly direction through Cecil, Peters, North Strabane, Nottingham and Union townships to a new interchange with Turnpike 43 south of Finleyville. The PTC will proceed with final design, right-of-way acquisition and construction of the project as funding becomes available.
